BMS Advanced 200A Smart Battery Management System for 8-16s Series ESS Battery Management and Control Unit

Product Description:

Product Model	CN-BMS1F02L(Split Board)	CN-BMS2F01L(Integrated Board)
Cell Series Supported	8-16S	8-16S
Product Size	100*300mm	100*300mm
Discharge Current	200A	200A
Temperature Protection	6	6
Communication	RS485,CAN,RS232	RS485,CAN,RS232
Charge/Discharge Port	Seperate port, charging heating current 2-20A	Seperate port, charging heating current 2-15A
Charge Current Limiting	5-20A	5-10A
Balance Current	50-100MA	50-100MA
Sleep Mode	50-100uA	50-100uA
Low-voltage Switch	√	√
Dry Contact	√	√

Solution Overview:

Experience unparalleled accuracy with our built-in high-precision SOC/SOH algorithm. It delivers precise and effective monitoring, providing you with an insightful view of the battery's authentic state.
• Our solution is equipped with an array of advanced software protection functions, expertly designed to guard against over voltage, over current, over charge, over discharge, and over temperature.
protection functions such as reverse connection and short circuit.
• Benefit from intelligent passive equalization, enabling individual discharge equalization for each cell with an impressive equalization current of up to 50mA.
• Enjoy the versatility of pre-charge, heating, and multiple sleep/wake-up functions. It also features a comprehensive multi-level alarm system for enhanced safety.
• Future-proof your setup with expandable current limiting plates (10A/20A), supporting multi-packet parallel use with both active and passive current limiting choices.
• Stay connected and informed with our support for Bluetooth applet and APP integration.

Product Characteristics:

Enhance your experience with support for external display, offering real-time data at a glance.
• Seamless parallel use and compatibility with mainstream inverter protocols ensure a flexible and integrated power solution.
• Robust multi-layered software protection features include safeguards against over voltage, over current, over discharge, over temperature, anti-reverse connection,
and short circuit.
• With its built-in high-precision SOC algorithm, the system precisely and effectively identifies the battery's actual condition, ensuring optimal performance.
• Host support expands the possibilities of integrating into diverse setups.
• Customizable software parameters cater to your specific needs, ensuring a personalized and efficient management experience.

Product Tags:

200A Smart Battery Management System



Advanced Battery Management System



200A BMS Management System

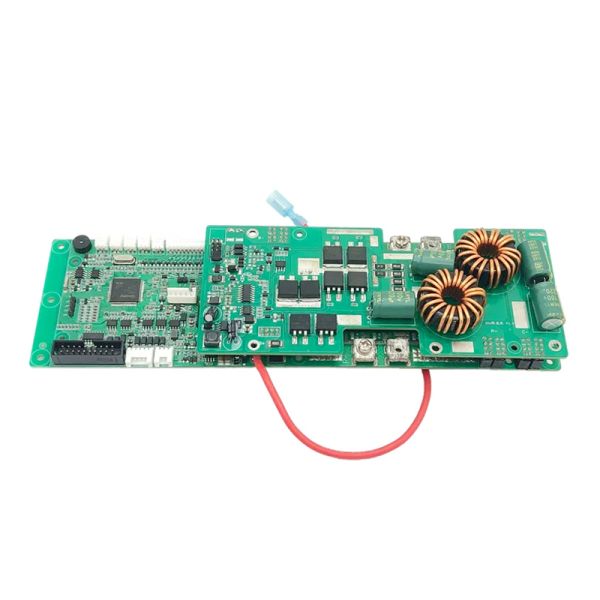

BMS Advanced 200A Smart Battery Management System for 8-16s Series ESS Battery Management and Control Unit Images
